First Alert Hardwired LED Strobe Light Smoke Alarm with 10-Year Sealed Battery - 7020BSL (1038335)
All Sales Are Final
- AC Powered with 10-Year Sealed Battery Backup.
- Smart Strobe with separate flash patterns to distinguish between smoke and carbon monoxide.
- 177 Candela Synchronized LED strobe light provides effective visual warning intended to wake hearing impaired residents.
- Slim, low profile design.
Hardwired LED Strobe Light Smoke Alarm with 10-Year Sealed Battery
The First Alert Hardwired LED Strobe Light Smoke Alarm with 10-Year Sealed Battery features a powerful LED strobe that’s proven to be extremely efficient in providing assistance for individuals with hearing impairments. The intuitive use of a Smart Strobe light carries the ability to distinguish between Smoke/Heat and CO dangers. First Alert Hardwired LED Smoke Alarms include a wide compatibility range and can be interconnected with First Alert and BRK Smoke, CO, Smoke/CO Combination and Heat alarms (up to 18 detectors, 12 can be smoke alarms).
First Alert's Hardwired LED Strobe Light Smoke Alarm uses a photoelectric smoke sensing sensor that provides optimal protection from smoldering fires. Photoelectric smoke alarms also reduce the likelihood of false alarms like those caused from cooking fires and shower steam from sounding. This hearing impaired smoke alarm meets UL Standards and fulfills the requirements of the American with Disabilities Act.
This Hardwired LED Strobe Light Smoke Alarm is for you if:
- You need to install a smoke or CO alarm for the hearing impaired that meets ADA requirements.
- You already have or are purchasing First Alert compatible hardwired smoke or carbon monoxide alarms.
Where to place Hardwired LED Strobe Light Smoke Alarms:
- One should be placed in the bedroom of every hearing impaired person. Additional strobe light smoke alarms should be installed in any room where a hearing impaired person may be present.
- This would include residential and institutional applications such as sleeping rooms of hospitals, hotels, motels, public housing dormitories and other multifamily dwellings.

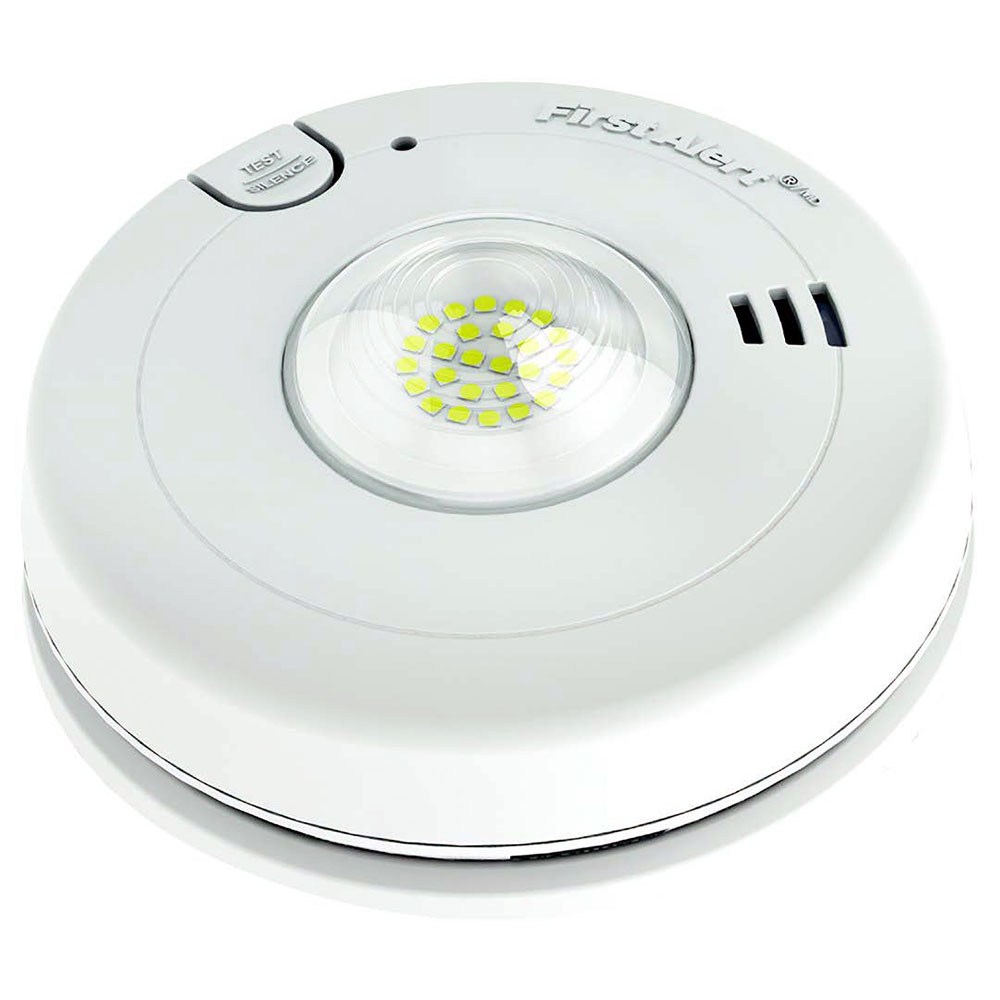

First Alert Hardwired LED Strobe Light Smoke Alarm 7020BSL
How to Install First Alert 7020BSL Hardwired LED Strobe Light Smoke Alarms:
In this guide, we'll be showing you how to install First Alert Hardwired Smoke and Carbon Monoxide Alarms. Here are a few items you'll need before starting the installation process: Needle-nose pliers or utility knife, screwdriver, wire stripper, wire nuts and a ladder.
Hardwired Smoke or Carbon Monoxide Alarm Requirements:
- 120V household electrical circuit (unswitched 120VAC)
- Standard wiring junction box to a 4 in. (10 cm) size, on either the ceiling or wall
- Selecting an appropriate location to install your smoke and carbon monoxide alarms (see below guidelines for additional information):
- When installing an alarm on the wall, the top edge of an alarm should be placed between 4 in. (100 mm) and 12 in. (300 mm) from the wall/ceiling line.
- When installing an alarm on the ceiling, place the alarm as close to the center as possible.
- In either case, install the alarm at least 4 in. (100 mm) from where the wall and ceiling meet.
- First Alert Smoke Alarm FAQs
- First Alert Carbon Monoxide Alarm FAQs
Connecting First Alert Hardwired Alarms to 120V Wiring
To begin, turn off power at the junction box and connect your alarm to the building's electrical wiring.
- Locate the junction box and turn off power
- Remove the power connector from the new alarm's packaging
- Using wire nuts, attach the hot (black), neutral (white), and interconnect (orange) wires
Black wire (hot) |
Attach to black wire on power connector |
White wire (neutral) |
Attach to white wire on power connector |
Orange wire (interconnect) |
Standalone (single-station) alarm: This wire is not needed; tuck the orange wire into the junction box. Interconnected alarms:
|
Mounting First Alert Hardwired Alarms
- Secure the mounting bracket to the ceiling or wall using screws (included in the package)
- Insert the power connector into the plug on the back of your alarm
- Tuck any hanging wires into the junction box
- Position the base of the alarm onto the bracket and turn it clockwise until it's secured
- Remove the pull-tab to activate the backup battery
Installing Additional and/or Interconnecting First Alert Hardwired Alarms
If you are installing more smoke or carbon monoxide alarms, you'll want to repeat the process throughout the building. Interconnected smoke and co alarms must meet all requirements:
-
The same fuse or circuit breaker must power all interconnected alarms.
-
Up to 18 compatible detectors can interconnect, with a limit of 12 smoke alarms.
-
The total length of wire interconnecting the alarms should be less than 1,000 ft. (300 meters). This type of wire is commonly available at hardware and electrical supply stores.
-
All wiring must conform to all local electrical codes and NFPA 70 (NEC). Refer to NFPA 72, NFPA 101, and your local building code for more information.
-
Interconnect wiring diagram:
If you have any doubts or reservations about these interconnect requirements, please contact an experienced electrician to install your wiring and hardwired alarms.
Restoring Power and Testing Hardwired Alarms
Once you've installed your hardwired alarms, you'll want to restore power to the junction box. Under regular operation, the power indicator light on the alarm will shine/blink to indicate that it is receiving AC power.
Here's how you can test standalone or interconnected alarms:
-
Standalone Alarms: Press and hold the Test/Silence button until the unit triggers an alarm.
-
Interconnected Alarms: Press and hold the Test/Silence button until the first unit triggers an alarm. All interconnected detectors should sound off. Repeat this process to test each alarm in the interconnected series.
- Power Source: Hardwired
- Battery Backup: 10 Year Sealed
- Sensor: Photoelectric
- Optipath 360° Technology: Provides 360° of direct access to the smoke sensing chamber
- Strobe: Powerful 177 candela LED strobe light provides visual warning for hearing imparied residents
- Smart Strobe: Separate flash patterns to distinguish between smoke/heat and carbon monoxide
- Strobe Signal Synchronization:When multiple units are installed, strobes flash in unison
- Flash Rate: 1Hz
- Smart Interconnect: Can be linked with up to 18 units (12 Smoke, 6 CO/Heat/Relay)
- Alarm Indication: Automatically identifies which unit initiated alarm
- Easy Installation: Plug-in power connector for hassle-free installation
- Standards: Meets ADA, ANSI 117.1, NFPA 72, UL STD 1971 and requirements for visual signaling devices.
- Product Dimensions (LxWxH): 5.5 x 3 x 5.5 in.
- Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
