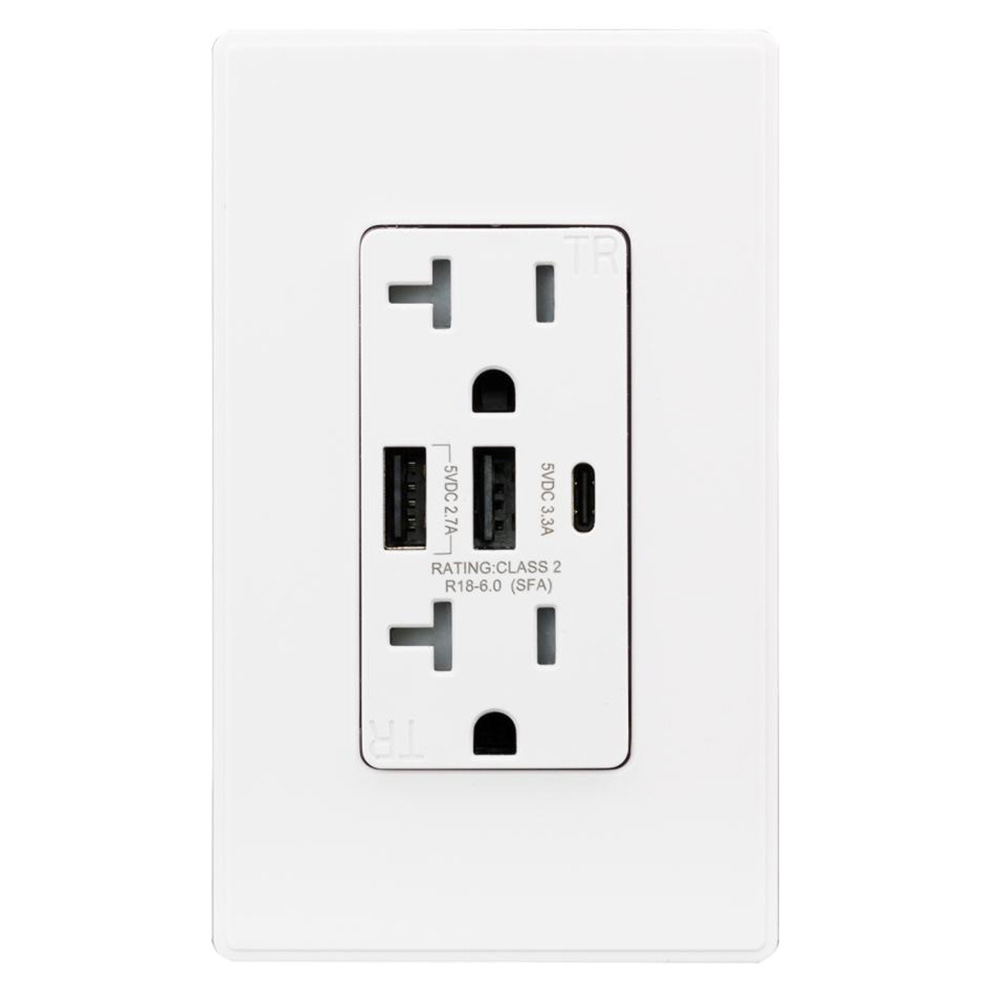

USI Electric A and C USB Chargers 20 Amp Tamper Resistant Duplex Receptacle Wall Outlet, White - USB2R3WH20CA
- Charge compatible devices directly without adapter
- Type C port and 1-Type A port rated at 3.3 amps
- 1-Type A ports rated at 2.7 amps
- Ideal for new or replacement outlet installations
- Replaces a standard single or duplex receptacle
- Quick & easy charging of compatible devices
- iPod®, iPhone®, iPad® mobile phones, tablets, GPS, digital cameras, E-Readers, Bluetooth®, headsets, etc.
- Tamper-resistant receptacle
- Restricts access to single-prong foreign objects
- Auto shut down USB ports
- If combined devices exceed power capacity of 6.0 amps
- Backwire compatible
- #12 AWG or #14AWG solid or copper clad wire
- Tri-drive wiring screws
- Backed out and staked
- Captive screws (for device)
- Color-Matched Wall Plate included
- Meets UL 498 and UL 1310 Standards
- Meets DOE and CEC Requirements
- CSA C22.2 No. 42 Certification
- 2 Year Limited Warranty
USI Electric 20 Amp Type A and C USB Chargers Wall Outlet, White Product Description
Keep your devices fully charged and ready to go with this USB Charger & Tamper Resistant Receptacle. The USI 20 Amp Standard Duplex Wall Outlet + USB Charging Outlet features 2 Type A and 1 Type C Charging Ports. You’ll have a reliable option to conveniently charge your smart phones, tablets and other electronic devices. Tamper-Resistant construction restricts access from single-prong objects such as keys, nails and other items. This USI Standard Duplex Wall w/ USB Charging Outlet comes with an Auto Shut Down feature that activates when all connected devices exceed power capacity. Backwire compatible, this USI Outlet implements a simple installation process (hardware included). USI Tamper-Resistant Duplex Outlets meet a series of standards, requirements and certifications.
*This selection is not weather-resistant.
- Color: White
- Tamper Resistant: Yes
- Weather Resistant: No
- Rated Voltage: 125 Volt AC
- Rated Frequency: 60 Hz
- Rated Current: 20 Amp
- Trip Time (nominal): 25 mS
- Trip Level: 4 - 6 mA
- 2-Pole, 3-Wire Grounding
- 20 amp: 125V AC, 5V DC, 6.0 Amp Charging
- NEMA 5-20R
- FCC Part 15: Class B for Residential
- Operating Temperature: -4° F to 104° F (-20° C to 40° C)
